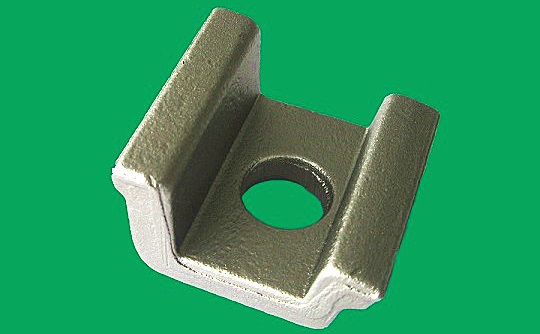

High Tensile Railroad Clips DIN5906 / Material Q235 Fastening fixing clips

Brand Name : ZhongYue

Model Number : SUYU66

Certification : ISO9001:2015

Place of Origin : China

MOQ : 2000sets

Price : Negociable

Payment Terms : T/T, 30% in advance

Supply Ability : 850 Tons / Month

Delivery Time : 15-30 Days after Receiving PO

Packaging Details : 25kg double-layer woven bag and free fumigation wooden pallet

Product : Rail Clip

Material : Q235 or Customized

Surface : Plain

Application : Fastening Rails

Dimension : Customized

Type : KPO

Contact Now

High Tensile Railroad Clips DIN5906 / Material Q235 Fastening fixing clips

Quick Description

Adjustable rail clip is designed to fix heavy rails, on narrow supports, in the most arduous applications.
It can withstand a horizontal force from the rail of 120kN (12.2 tonnes ). Its low profile allows it to be used with cranes that are fitted with guide rollers.

Features

• The proven design has been used successfully for many years throughout the world.
• The clip is welded to the rail support. No access is required from below.
• The two main parts are locked together on tightening the grade 8.8 bolt.
• The clip has a self-tightening mechanism.
• A special vulcanised rubber block applies a controlled force to the rail.

Specification

Brand

Zhongyue

Name

Railroad 22/130 AN/BN Clamping clip

Type

KPO3, KPO6, KPO9

Or the type by customers’ drawings

Material

Q235-forging

ZG35-cast steel

QT500-7-cast iron

Chemical composition(%)

C:0.12-0.20,

Mn:0.30-0.70, Si:≤0.3,

P:≤0.045, S:≤0.045

C: ≤0.4, Mn:≤0.9,

Si: ≤0.5, P:≤0.04,

S:≤0.04

C:3.60-3.80,

Mn:≤0.6, Si:2.50-2.90,

P:≤0.08, S:≤0.025

Surface

plain (oiled)

Standard refers

DIN5906

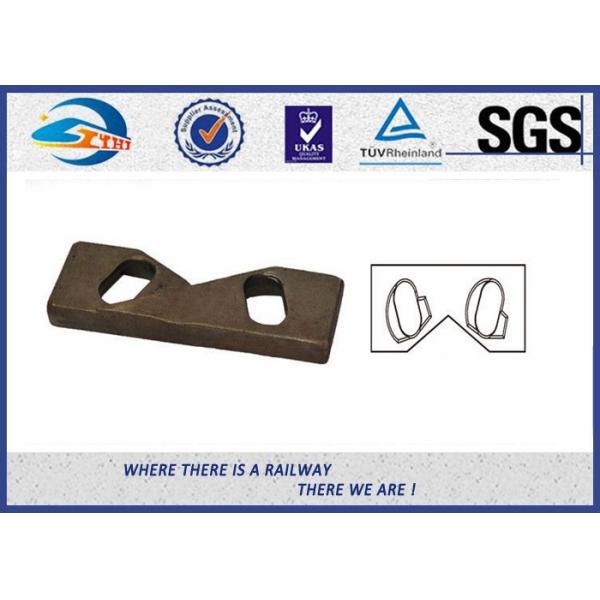

High Tensile Railroad Clips DIN5906 / Material Q235 Fastening fixing clips

High Tensile Railroad Clips DIN5906 / Material Q235 Fastening fixing clips

High Tensile Railroad Clips DIN5906 / Material Q235 Fastening fixing clips

If you have any futher question or request, welcome to contact me.


Contact: Janet Jiang zy15@zyrail.com
